Name: Accord 50 FXM
SKU: 486367

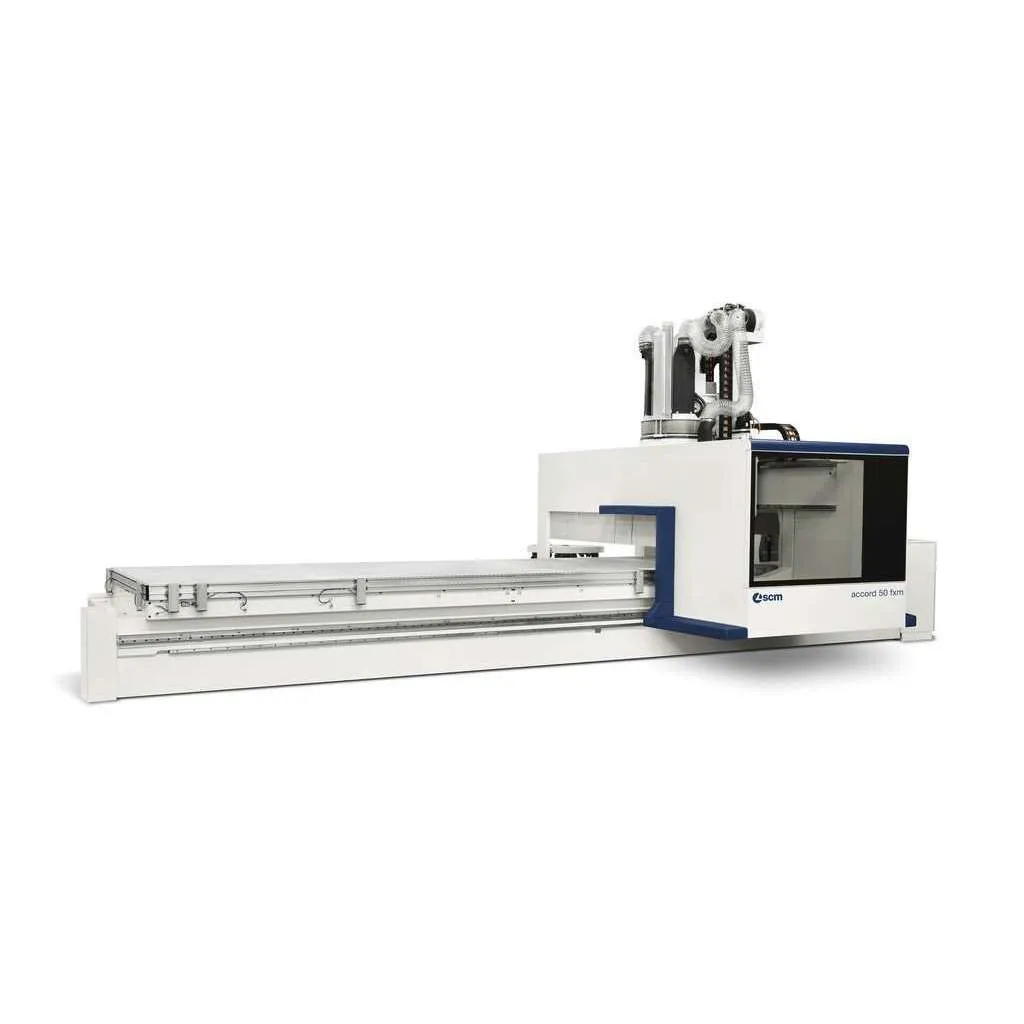

5-axis CNC machining centre with mobile gantry structure, designed for manufacturing complex-shaped and large-sized objects.
It meets the needs of many sectors, from design elements in wood to applications for plastic and Advantagesced materials.

Advantages

HEAVY DUTY PROFILING

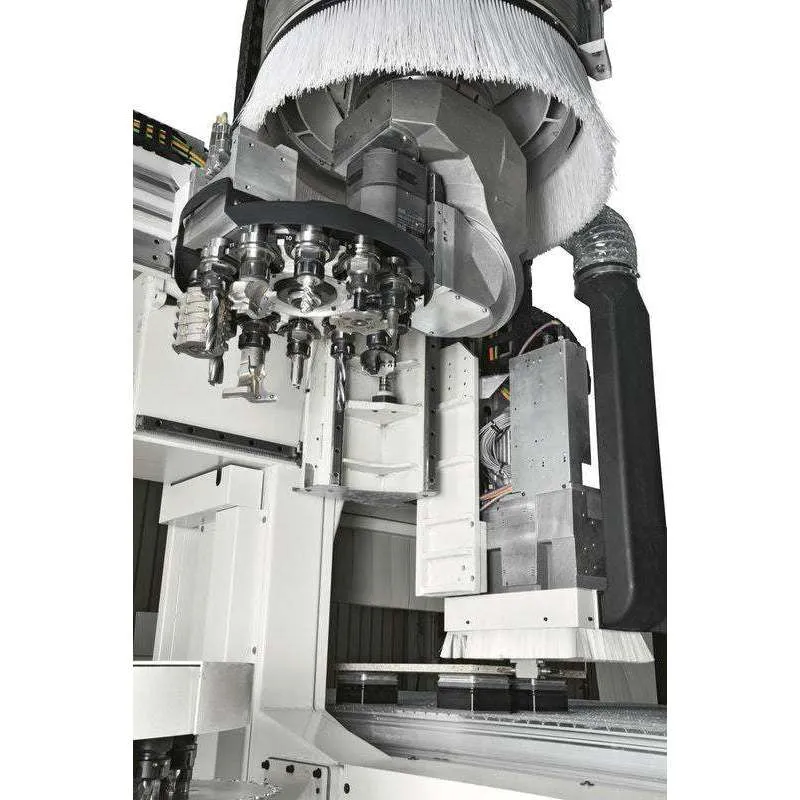

The PRISMA machining heads with 5 interpolating axes are designed for the processing of solid wood.
The ideal solution for windows, doors and stairs.

LARGE WORKING VOLUME
The increased Z-axis stroke allows the machining of work-pieces up to 500 mm in height, using large dimensioned tools.

RELIABLE TECHNOLOGY
The SCM aluminium multi-function worktable guarantees perfect lasting planarity.

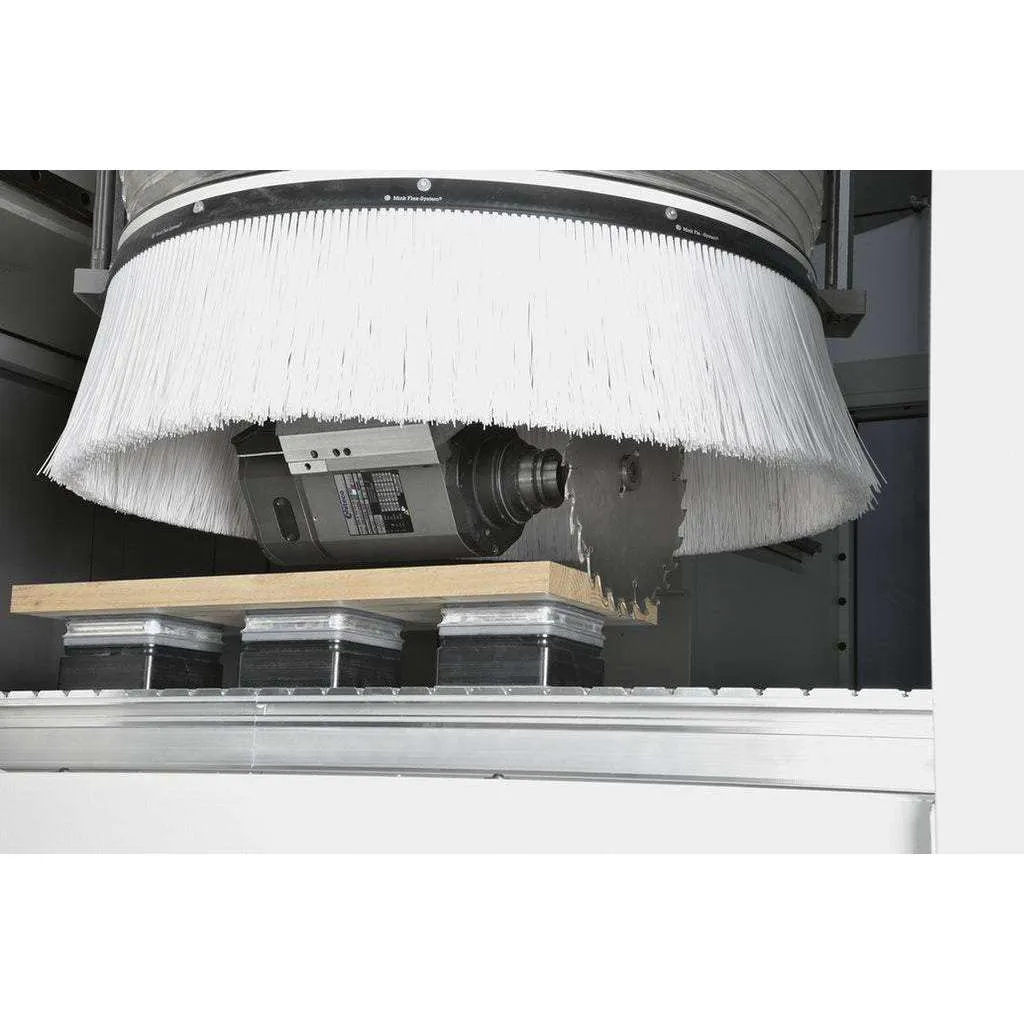

The direct integrated vacuum system allows the optimum work-piece hold down and the T-grooves are ideal for fitting of any type of mechanical locking equipment.

INTELLIGENT PROGRAMMING
Simple and intuitive programming, thanks to the MAESTRO software that includes modules for different applications.

Technical data

Accord 50 FXM
Working areas
X-Y-Z axes dimensions	mm	3650x1600x500 4970x1600x500 6170x1600x500 3650x2120x500 4970x2120x500 6170x2120x500
Axes
X-Y-Z axes max. speed	m/min	95-80-30
Machining head
5 axes electrospindle motor power (max.)	kW	17
5 axes electrospindle rotation speed (max.)	rpm	24000
Drilling unit
Vertical and horizontal spindles (max.)	n.	26
Rotation speed	rpm	8000
