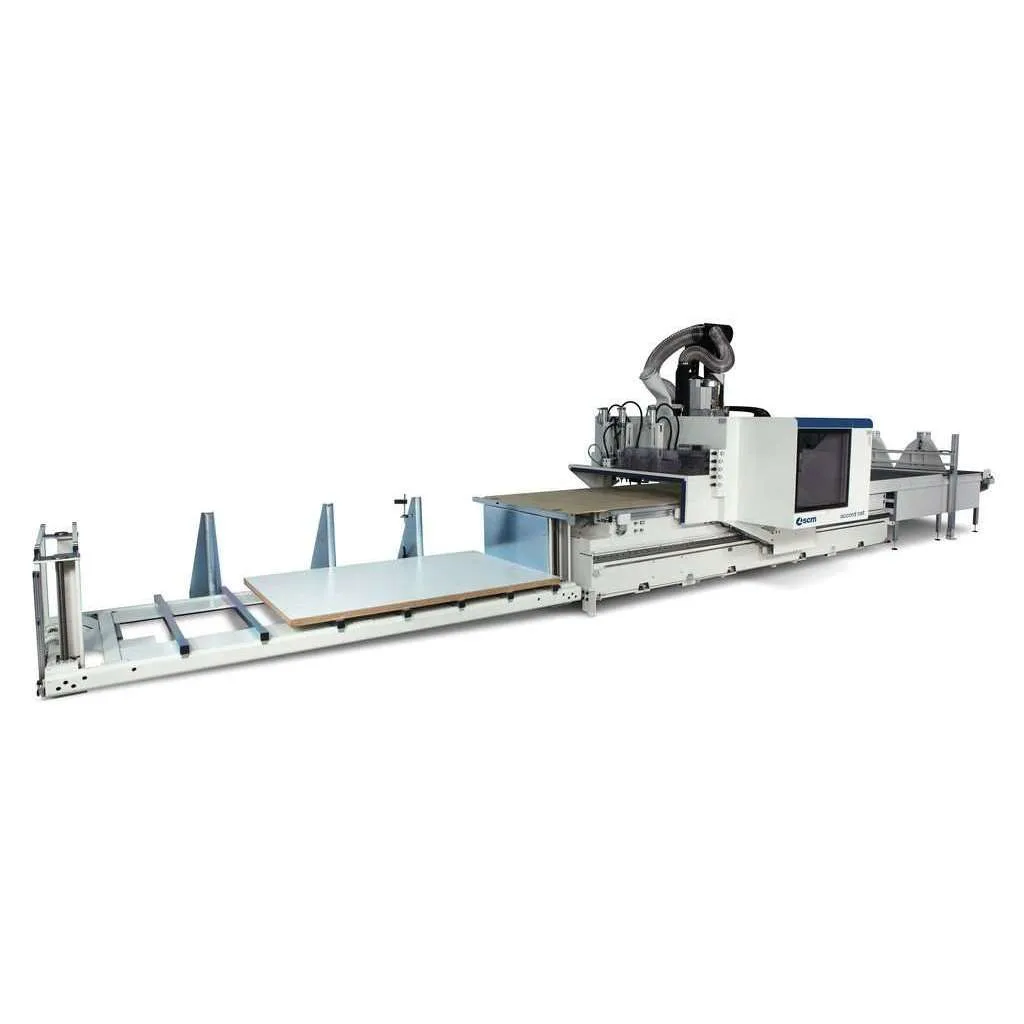

A complete range of CNC machining centres integrated with automatic loading and unloading system for the control of the complete work cycle from a single operator.

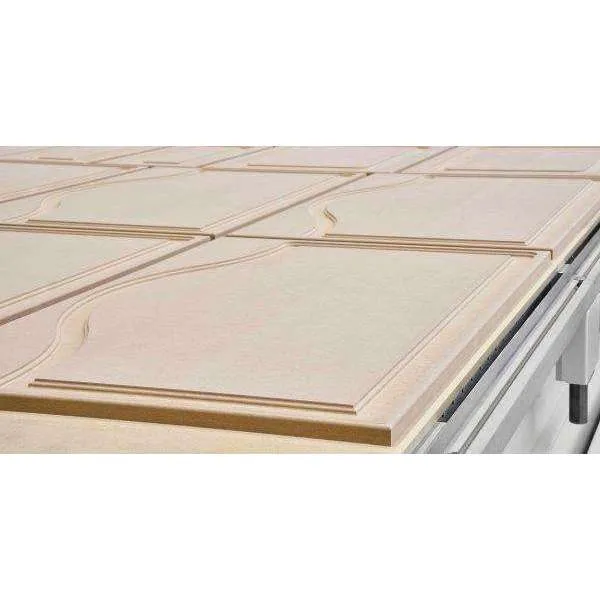

Optimal solutions to meet the specific needs of a flexible production with nesting tecnology and suitable to process panels of different materials: lamellar wood, plywood, chipboard, MDF, plastic, composite and resins.

Advantages

Name: Accord NST
SKU: 492372

HEAVY DUTY PROFILING

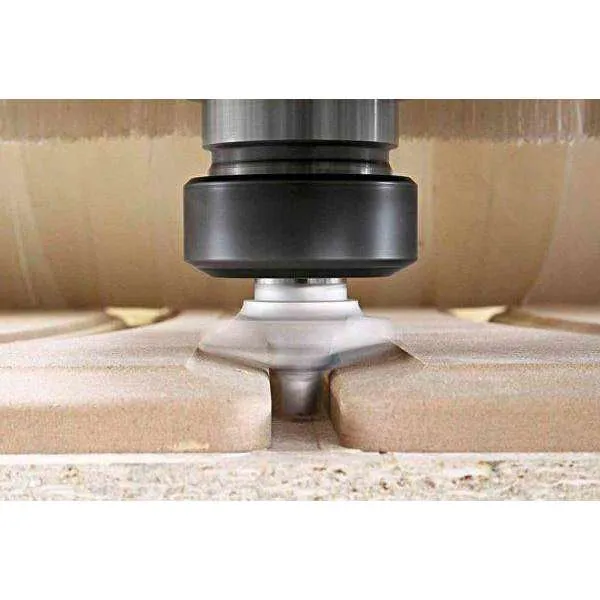

The PRISMA machining heads with 5 interpolating axes are designed for the wood processing and ensure maximum flexibility and best finish quality.

RELIABLE TECHNOLOGY
The SCM aluminium multi-function worktable guarantees perfect lasting planarity.
The direct integrated vacuum system allows the optimum work-piece hold down and the T-grooves are ideal for fitting of any type of mechanical locking equipment. The best solution also for nesting processing.

PERFECT FINISH QUALITY

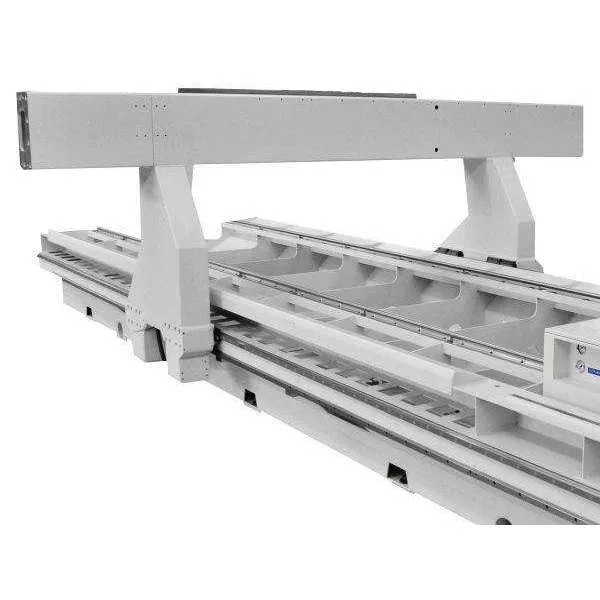

The architecture with fixed table and mobile gantry structure, consisting of a sturdy construction equipped with front and rear sliding guides, ensures maximum accuracy and finish quality over the entire work area.

INTELLIGENT PROGRAMMING
Simple and intuitive programming, thanks to the MAESTRO software that includes modules for different applications.

Technical data

Accord NST
Working areas
X-Y-Z axes dimensions	mm	3650x1600x350 3650x2120x350 4250x2120x350
Axes
X-Y-Z axes max. speed	m/min	90-90-30
Machining head
Max. electrospindle motor power	kW	15
Max. electrospindle rotation speed	rpm	24000
